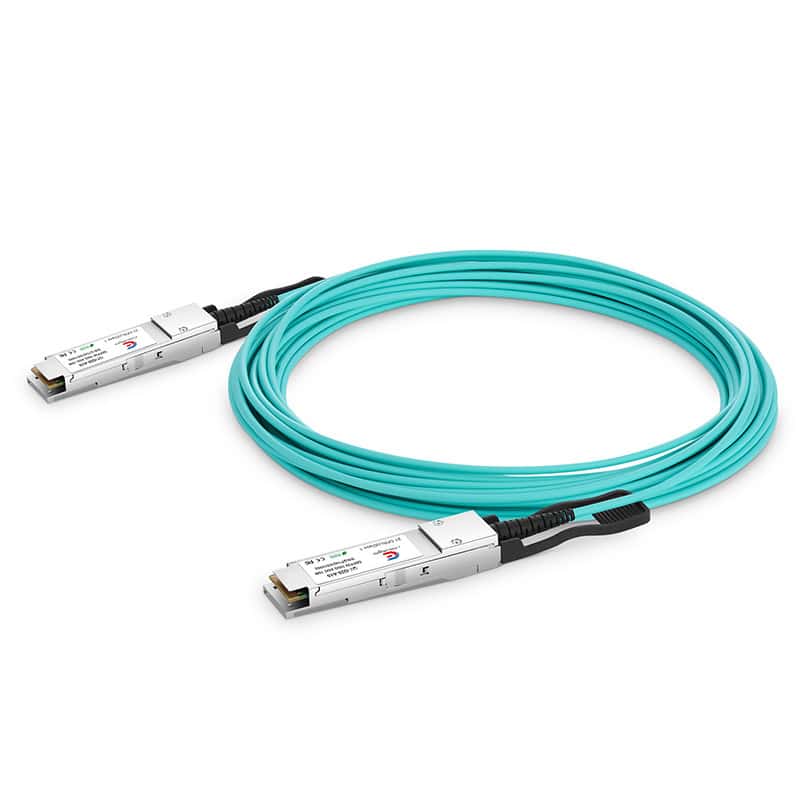

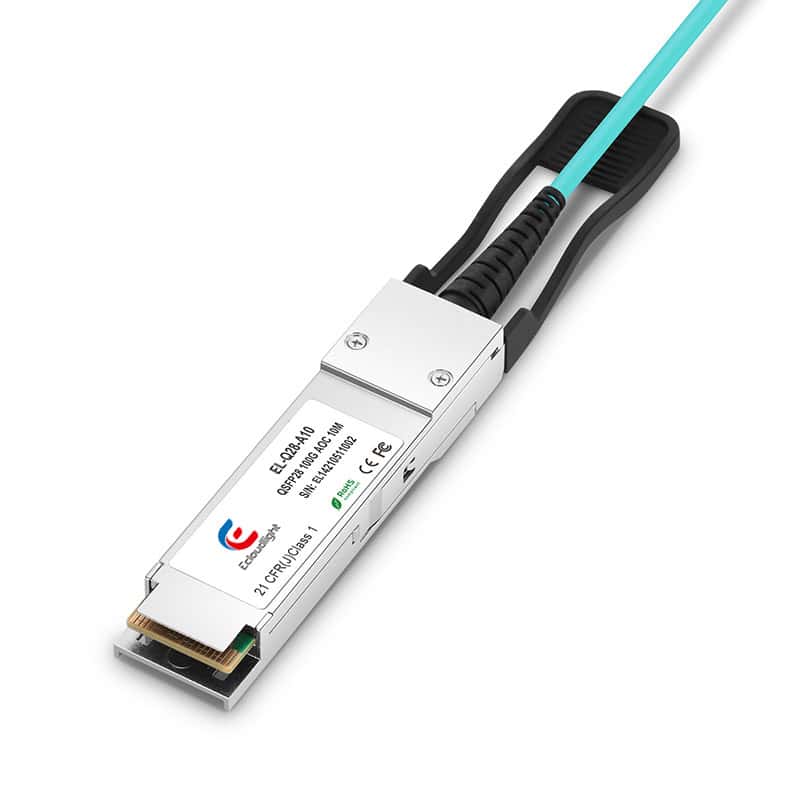

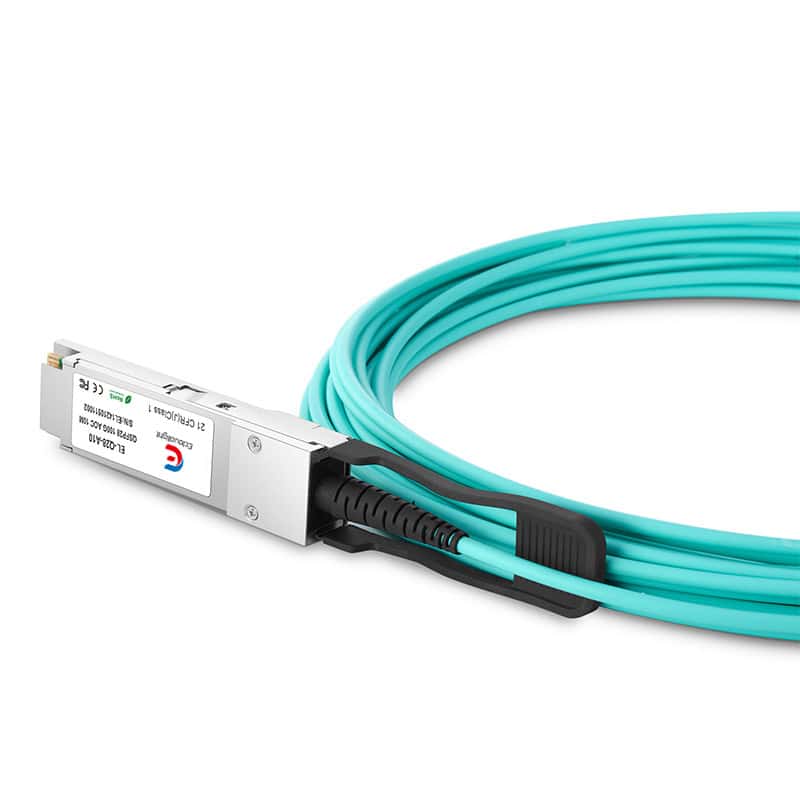

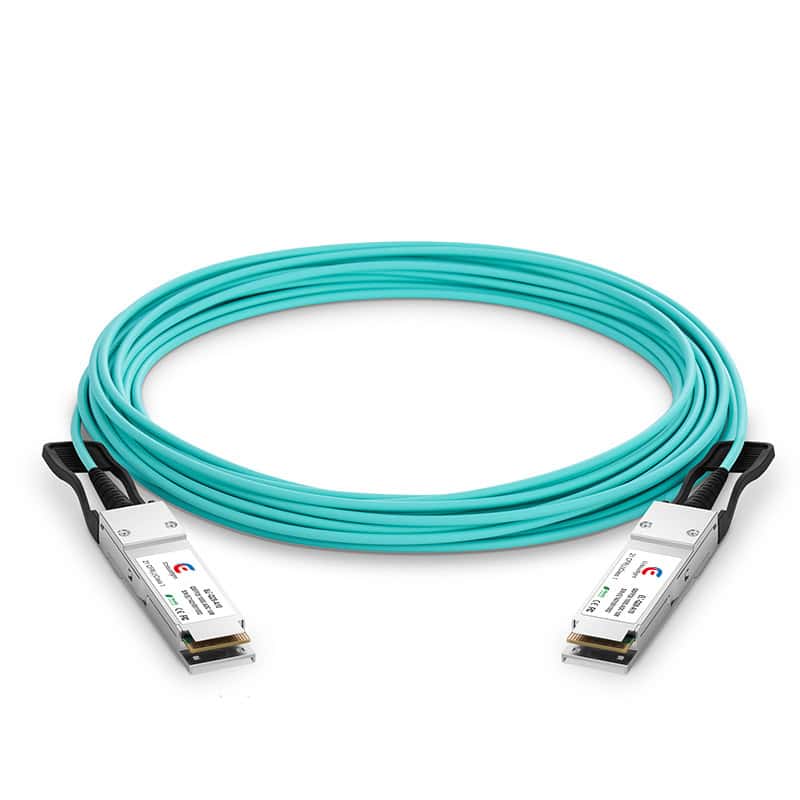

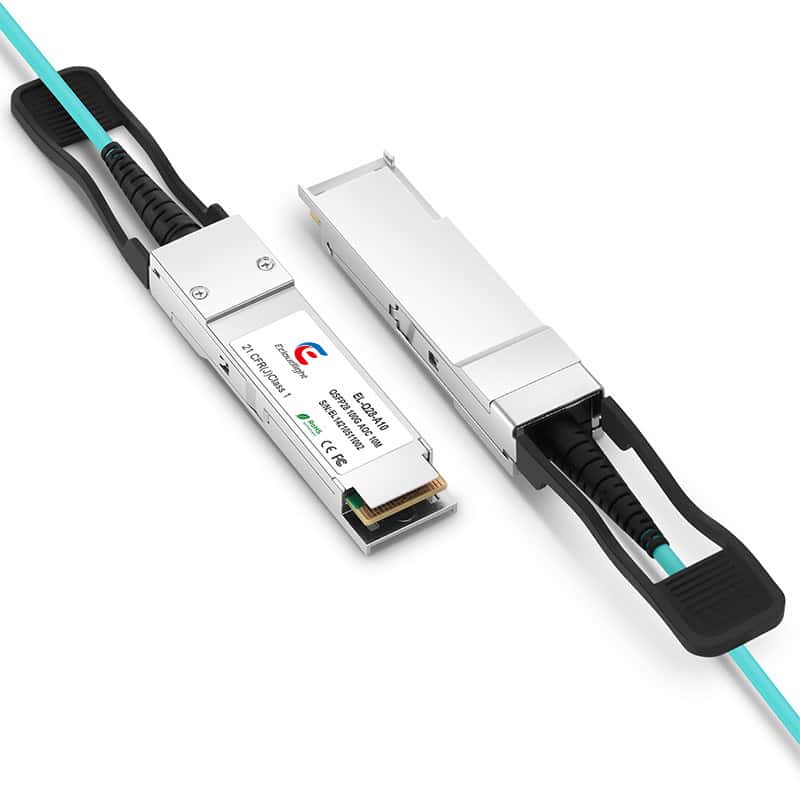

5m (16ft) Cisco Compatible QSFP-100G-AOC5M 100G QSFP28 AOC Active Optical Cable

2 sold in last 8 hours
Ecloudlight
Q28AC-5M-CO
Out of stock
$166.00
Size Guide
Terms & conditions

Subcribe to back in stock notification

Free Shipping

Free standard shipping on orders over $199

Estimated to be delivered in 5 business days

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

The QSFP28-100G-AOCxM series of QSFP+ active optical cables (AOCs) are designed for 100G Ethernet (100GbE) applications. These 100G QSFP28 AOC cables provide an ideal alternative solution to QSFP28 DACs (direct attach copper cables) and QSFP28 transceivers of short reach while providing improved signal integrity, lower cost, and performance value. They are designed expressed for high speed, high density and low power consumption for today’s data center networking applications. The QSFP28 AOC cables are composed of QSFP28 transceivers in both ends and OM3(OM4) multimode fiber cable in different cable length from 1 to 100 meters. They offer 4 independent data transmission channels and 4 data receiving channels via the multimode fibers. An aggregate data rate of 100 Gbps can be achieved by this product. The QSPF-100G-AOC1M is a popular option in this product line, providing 1 meter of cable length. This product is compliant with SFF-8436 and IEEE 802.3ba standards. It is a key enabling technology for next generation data centers supporting higher data rates and higher density applications.

Part Number: QSFP-100G-AOC5M Vendor Name: Ecloudlight
Connector Type: QSFP28 Data Rate: 100Gbps
Minimum Bend Radius 7.5mm Cable length: 5m(16.4ft)
Jacket Material: OFNP Cable Type: OM4/OM3 MMF
Transmitter Type VCSEL Receiver Type: PIN
Power Consumption: P≤3.5W CDR: Support
Power supply: 3.3v Temperature: 0 to 70°C (32 to 158°F)
Protocols: 100G Ethernet or InfiniBand 4xFDR/EDR Warranty: 3 Years
